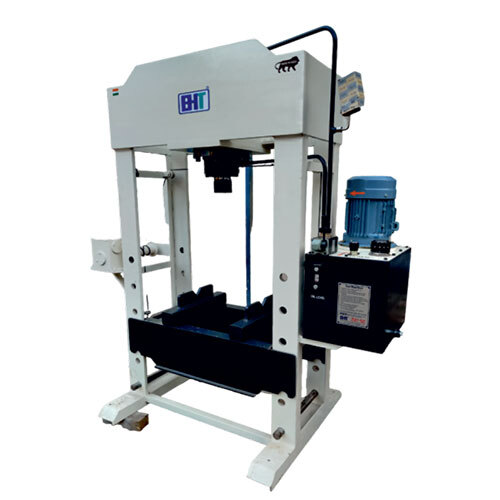

Motorized Operated H Type Hydraulic Press

Send Inquiry

Request To Call Back

Motorized Operated H Type Hydraulic Press

Get a Price/Quote

MOQ : 1 Piece

Motorized Operated H Type Hydraulic Press Specification

Nominal Force
100 Ton

Power Source
Electric

Condition
New

Dimension (L*W*H)
1200 mm x 1000 mm x 2200 mm

Power(W)
5 HP / 3.7 kW

Voltage
415V AC, 3 Phase, 50 Hz

Motor
Induction Motor

PLC System
Not Included

Solenoid Valve
Provided

Pre-Fill Valve
Provided

Pressure Gauge
Included, Analog Type

Max Opening Distance
800 mm

Working Table Size
600 mm x 800 mm

Control
Hand Lever and Push Button

Color
Industrial Blue/Grey

Oil Tank Capacity
200 Liters

Structure
Welded

Cylinder Stroke
350 mm

Operating Mode
Motorized

Frame Type
Heavy Duty H Frame

Return Type
Hydraulic

Application
Forming, Punching, Bending, Straightening

Weight
Approx. 2800 Kg

About Motorized Operated H Type Hydraulic Press

Machine Features:

H Frame Body.
Adjustable Working Table.
High Tonnage Capacity.
Heavy Body Structure.
2 Side Open Working Area.
Easy Operation.
Hydraulic Cylinder Hard Chrome Plated, Grinding & Honing.
Standard Raw Materials (Available everywhere in World).
Highly Durable & Reliable.
High Quality & Performance.
Very Low Maintenance.

Operating System:

Manual Hand Lever Operated. (Motorized)
Push Button Operated.
Customized & Special Purpose (SPM) size & designs available.

Hydraulic System:

Hydraulic Cylinder Hard Chrome Plated, Grinding & Honing.
Hydraulic Pump: Single Speed Pump / Double Speed Pump
Solenoid Valve: 24V / 220V or Hand Lever Valve
High Pressure Working.
Manual Pressure Adjustment.
Hydraulic Speed Control System.
Hydraulic System Make: Yuken / Rexroth / Veljam / Poly Hydrone or Equivalent.

Safety Feature:

Hydraulically Safety Interlock
Electrically Safety Button.

Powerful Hydraulic Performance

This press delivers up to 100 tons of force, making it perfect for demanding applications such as forming, bending, punching, and straightening. The 350 mm cylinder stroke and 800 mm max opening distance allow handling of diverse workpieces with efficiency and reliability.

Robust and Reliable Construction

Built with a welded heavy-duty H frame, this machine is designed for longevity. Its industrial blue/grey finish resists wear, and the 2800 kg structure provides outstanding stability, even during rigorous operations.

User-Friendly Operation and Controls

The hydraulic press features both hand lever and push button controls, offering precise operation. An easy-to-read analog pressure gauge is included for clear monitoring, while safety and efficiency are ensured with a pre-fill valve and solenoid valve.

FAQs of Motorized Operated H Type Hydraulic Press:

Q: How does the motorized operated H type hydraulic press enhance industrial metalworking processes?

A: The press streamlines tasks like forming, punching, bending, and straightening by providing up to 100 tons of force with precise control. Its motorized operation, supported by hand lever and push button controls, boosts productivity and consistency in metalworking applications.

Q: What safety features are equipped on this hydraulic press?

A: This model includes an analog-type pressure gauge for real-time monitoring, along with both a pre-fill valve and solenoid valve for safe and efficient hydraulic flow control. The sturdy welded frame further ensures operator safety during use.

Q: When is the best scenario to use this hydraulic press?

A: The machine is best used in situations requiring high forceup to 100 tonsfor rigorous forming, bending, punching, or straightening tasks, especially where precision and repeatability are essential, such as in manufacturing, fabrication shops, and heavy industry.

Q: Where can this hydraulic press be installed and operated?

A: It is suitable for industrial environments including factories, workshops, and fabrication units throughout India. Installation requires an electrical supply of 415V AC, 3-phase, and adequate floor space to accommodate its 1200 x 1000 x 2200 mm dimensions.

Q: What benefits does the heavy-duty H frame structure provide?

A: The heavy-duty welded H frame enhances overall machine stability and minimizes deflection under load, ensuring long-lasting performance and accurate results even during intensive operations.

Q: How is the hydraulic system powered and controlled?

A: The press employs a 5 HP (3.7 kW) induction motor and features a hydraulic return type. Users can operate the press via a hand lever or push button, allowing for precise control over the press cycle.

Q: What is the process for using the press in daily operations?

A: To use the hydraulic press, set up your workpiece on the 600 x 800 mm table, set the desired pressure with the controls, and operate the hydraulic system through either the lever or button. Continuous monitoring via the pressure gauge ensures optimal and safe results throughout each cycle.
