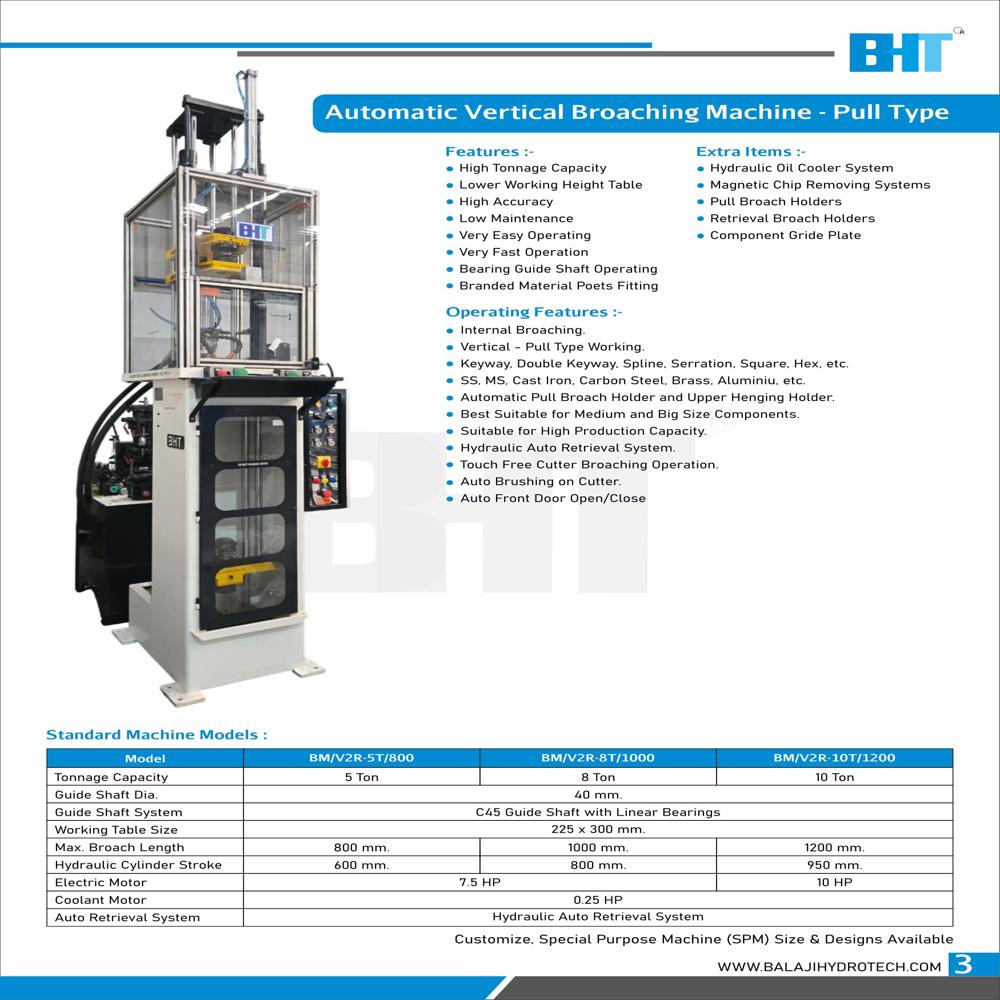

Automatic Vertical Broaching Machine - Pull Type

Name: Automatic Vertical Broaching Machine - Pull Type
Brand: BALAJI HYDRO-TECH
Price: 16500.0 INR
Availability: InStock

Price 16500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Vertical Broaching Machine - Pull Type Specification

Features
High tonnage capacity, lower working height table, easy operation, fast operation, touch free cutter broaching operation, auto brushing on cutter, auto front door open/close

Lubricating System
Hydraulic lubrication, branded material parts fitting

Motor Power
7.5 HP / 10 HP (Electric Motor)

Cooling System
Hydraulic Oil Cooler System, Coolant Motor (0.25 HP)

Frame Type
Heavy duty, industrial grade

Production Capacity
Customizable for medium and big components

Frequency
Standard Industrial Frequency (not specified directly)

Power Rating
7.5 HP, 10 HP (depending on model)

Operating Temperature
Industrial standards (not specified)

Accuracy
High accuracy

Connectivity Options
Standard industrial connections

Noise Level
Low/industrial minimum noise (not specified)

Model No
BM/V2R-5T/800, BM/V2R-8T/1000, BM/V2R-10T/1200

Machine Type
Automatic Vertical Broaching, Pull Type

Control System
Automatic control, hydraulic auto retrieval system

Drive
Hydraulic drive

Voltage
Standard Industrial Voltage (not specified directly)

Product Type
Automatic Vertical Broaching Machine - Pull Type

Technology
Vertical, Pull Type, Internal Broaching

Power Source
Electric

Operating Type
Automatic

Power
7.5 HP - 10 HP (Electric Motor)

Pressure
Hydraulic based pulling pressure

Surface Treatment
Branded material, industrial finish

Dimension (L*W*H)
Varies by model (e.g., working table size: 225 x 300 mm or 280 x 300 mm)

Weight (kg)
Not specified (varies by model and configuration)

Color
Industrial machinery color (depends on manufacturer)

Usage & Applications
Internal broaching, keyway, spline, serration cutting, square, hex, and more, suitable for S.S, MS, cast iron, carbon steel, brass, aluminium, etc.

Working Table Size
225 x 300 mm / 280 x 300 mm (Depending on Model)

Electric Motor
7.5 HP (5T, 8T), 10 HP (10T)

Guide Shaft Diameter
40 mm

Guide Shaft System
C45 Guide Shaft with Linear Bearings

Extra Items
Magnetic chip removing systems, pull broach holders, retrieval broach holders, component guide plate

Coolant Motor
0.25 HP

Auto Retrieval System
Hydraulic Auto Retrieval System

Hydraulic Cylinder Stroke
600 mm (5T), 800 mm (8T), 950 mm (10T)

Max Broach Length
800 mm (5T & 8T models), 1200 mm (10T model)

Tonnage Capacity
5 Ton, 8 Ton, 10 Ton (Based on Model)

About Automatic Vertical Broaching Machine - Pull Type

Explore the heroic capabilities of the Automatic Vertical Broaching Machine - Pull Type, trusted for grand, high-precision operations, and highly recommended for both medium and large-scale manufacturing. With a dominant presence, its robust C45 guide shaft with linear bearings and reduced operational noise makes it the hero in efficient broaching. Versatile in function, it processes internal broaching, keyways, splines, and more on S.S, MS, cast iron, brass, or aluminum. Hydraulic-driven with customizable tonnage (5T, 8T, or 10T), it ensures fast, accurate, and touch-free broaching for a variety of industrial applications.

Versatility and Precision in Broaching Applications

The Automatic Vertical Broaching Machine - Pull Type is specifically designed for internal broaching, keyway, spline, serration, square, and hex cutting. Ideal for both general and specialized industrial use, it delivers superb advantages such as highly accurate machining, rapid operation, and adaptability to various metals like SS, MS, brass, and aluminium. Its advanced hydraulic auto retrieval and low-working height table enhance operation, making it a compelling solution in mass production and specialized manufacturing environments.

Outstanding Supply Ability and Rapid Dispatch for Export Markets

Our Automatic Vertical Broaching Machine - Pull Type is highly sought after in global export markets due to its dependable supply rate and Quick Dispatch facility. We ship primarily via major FOB ports for streamlined logistics. Serving a grand domestic footprint, we cater to manufacturers, exporters, and service providers seeking reliable, high-quality broaching solutions. Our broad supply ability ensures timely delivery and outstanding customer service, meeting the needs of both local and international clients.

FAQ's of Automatic Vertical Broaching Machine - Pull Type:

Q: How does the hydraulic drive system benefit broaching operations?

A: The hydraulic drive system delivers consistent, powerful pulling pressure, ensuring precise broaching with minimal vibration and reduced noise levels for improved accuracy and operator comfort.

Q: What materials can be processed with the Automatic Vertical Broaching Machine - Pull Type?

A: This machine excels in processing stainless steel, mild steel, cast iron, carbon steel, brass, and aluminium, making it highly versatile for different industrial requirements.

Q: Where can this broaching machine be installed or used?

A: The Automatic Vertical Broaching Machine - Pull Type is suitable for installation in manufacturing plants, workshops, and heavy industries engaged in component machining, both for domestic and export-focused applications.

Q: What advantages does the auto retrieval system provide?

A: The hydraulic auto retrieval system ensures fast and safe tool movement, minimizes manual intervention, reduces downtime, and improves overall operational efficiency.

Q: How is the cooling system integrated, and what are its benefits?

A: Fitted with a hydraulic oil cooler and coolant motor, the integrated cooling system maintains stable operating temperatures, protecting machine components and ensuring longevity during continuous use.
