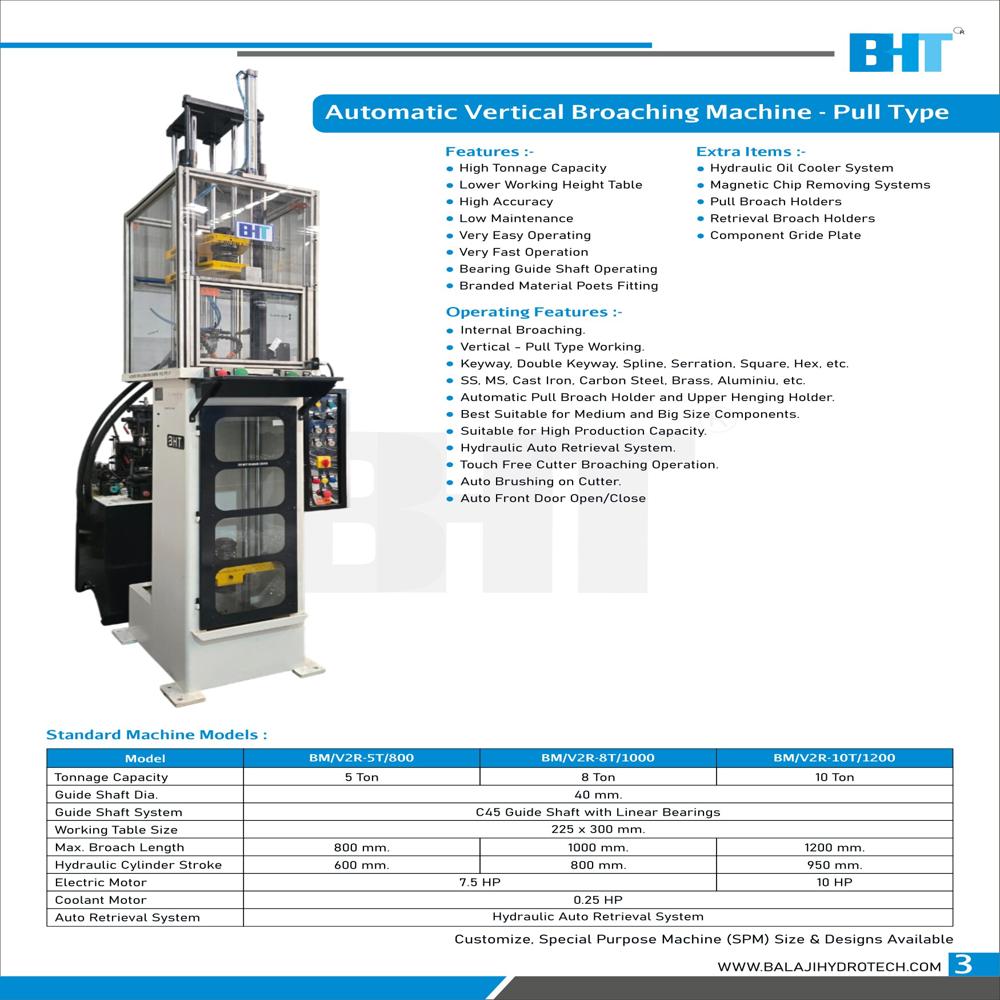

Automatic Vertical Broaching Machine - Pull Type

Name: Automatic Vertical Broaching Machine - Pull Type
Brand: BALAJI HYDRO-TECH
Price: 1600000.0 INR
Availability: InStock

Price 1600000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Vertical Broaching Machine - Pull Type Specification

Drive
Hydraulic

Power Rating
7.5 HP/10 HP (as per model)

Model No
BM/V2R-5T/800, BM/V2R-8T/1000, BM/V2R-10T/1200

Control System
Hydraulic/Automatic Control, Touch Free Cutter Broaching Operation

Motor Power
7.5 HP (BM/V2R-5T/800, BM/V2R-8T/1000), 10 HP (BM/V2R-10T/1200)

Frame Type
Heavy Duty Frame

Lubricating System
Hydraulic Oil Cooler System (Extra Item)

Accuracy
High Accuracy

Production Capacity
Suitable for Medium and Big Size Components

Features
High Tonnage Capacity, Lower Working Height Table, Low Maintenance, Very Fast and Easy Operation, Bearing Guide Shaft, Branded Material Fitted, Auto Brushing On Cutter, Auto Front Door Open/Close

Machine Type
Internal Broaching, Pull Type

Cooling System
Coolant Motor 0.25 HP

Product Type
Automatic Vertical Broaching Machine - Pull Type

Technology
Hydraulic, Pull Type Operation

Power Source
Electric

Operating Type
Automatic

Power
7.5 HP (5T & 8T models), 10 HP (10T model)

Color
Standard Industrial (as per image, grey/black/yellow highlights)

Usage & Applications
Keyway, Spline, Serration, Square, Hex internal broaching on SS, MS, Cast Iron, Carbon Steel, Brass, Aluminium, etc.

Guide Shaft Diameter
40 mm

Coolant Motor
0.25 HP

Guide Shaft System
C45 Guide Shaft with Linear Bearings

Extra Items
Hydraulic Oil Cooler System, Magnetic Chip Removing Systems, Pull Broach Holders, Retrieval Broach Holders, Component Guide Plate

Hydraulic Cylinder Stroke
600 mm (5T & 8T), 950 mm (10T)

Electric Motor
7.5 HP (5T & 8T), 10 HP (10T)

Working Table Size
225 x 300 mm

Auto Retrieval System
Hydraulic Auto Retrieval System

Max. Broach Length
800 mm (5T & 8T), 1200 mm (10T)

Tonnage Capacity
5 Ton / 8 Ton / 10 Ton

Operating Features
Internal Broaching, Vertical Pull Type, Automatic Pull Broach Holder and Upper Henging Holder, Hydraulic Auto Retrieval, Auto Front Door Open/Close

About Automatic Vertical Broaching Machine - Pull Type

Offer your enterprise an advanced solution with our Automatic Vertical Broaching Machine - Pull Type, available in gilt-edged 5, 8, and 10 Ton capacities. Procure precision and reliability even for scarce, high-demand operations with famed C45 guide shafts, linear bearings, and a valiant hydraulic auto retrieval mechanism. Suited for broaching keyways, splines, hex, and more on a wide array of metals, its heavy-duty frame ensures unrivaled performance. Extra cutting-edge features like magnetic chip removal and auto front door elevate efficiency, making this the trusted choice for medium to large component production.

Wide-Ranging Application & Distinctive Machine Features

Designed for versatility, the Automatic Vertical Broaching Machine - Pull Type excels in precision internal broaching for keyway, spline, square, and hex forms on stainless steel, carbon steel, cast iron, brass, and aluminium. Featuring robust hydraulic systems, automatic pull broach holders, and an advanced auto door mechanism, it is ideal for plants handling medium to large components. Low maintenance, rapid cycle times, and a lower working height ensure effortless integration and heightened productivity in any production lineup.

Certifications, Market Value, and Distribution Capacity

Renowned for its arrival in key sectors, this machine carries certifications reflecting its high market value and reliability. It commands attention in the main domestic market, consistently meeting the rigorous standards of industrial production. Offered with dependable supply availability, distributors and dealers can charge forward with confidence, knowing this machine upholds top-tier engineering benchmarks and ensures a steady, scalable flow to meet growing industrial demands across a wide distribution network.

FAQ's of Automatic Vertical Broaching Machine - Pull Type:

Q: How does the Automatic Vertical Broaching Machine - Pull Type ensure high accuracy in internal broaching operations?

A: The machine integrates a C45 guide shaft system with linear bearings, precision hydraulic controls, and automatic pull broach holders to maintain exceptional accuracy during internal broaching, even on complex forms like keyways, splines, and hexes.

Q: What materials can be processed with this broaching machine?

A: The machine is engineered for versatility; it can process stainless steel, carbon steel, cast iron, brass, aluminium, and other industrial-grade metals, ensuring compatibility with a wide range of production needs.

Q: Where is the ideal application area for this broaching machine?

A: This broaching machine is best utilized in medium and large manufacturing plants where internal broaching of components is routine, especially in the automotive, machinery, and metalworking industries.

Q: What are the main benefits of the machine's hydraulic auto retrieval system?

A: The hydraulic auto retrieval system streamlines operations by automatically repositioning broaches, reducing downtime, and enabling continuous, touch-free broaching cycles for improved productivity and operator safety.

Q: How is the machine supplied to markets, and what is its availability?

A: The machine is distributed through a robust network of dealers, exporters, and suppliers to maintain steady supply ability across the main domestic market, supporting regular demand and fast delivery timelines.
